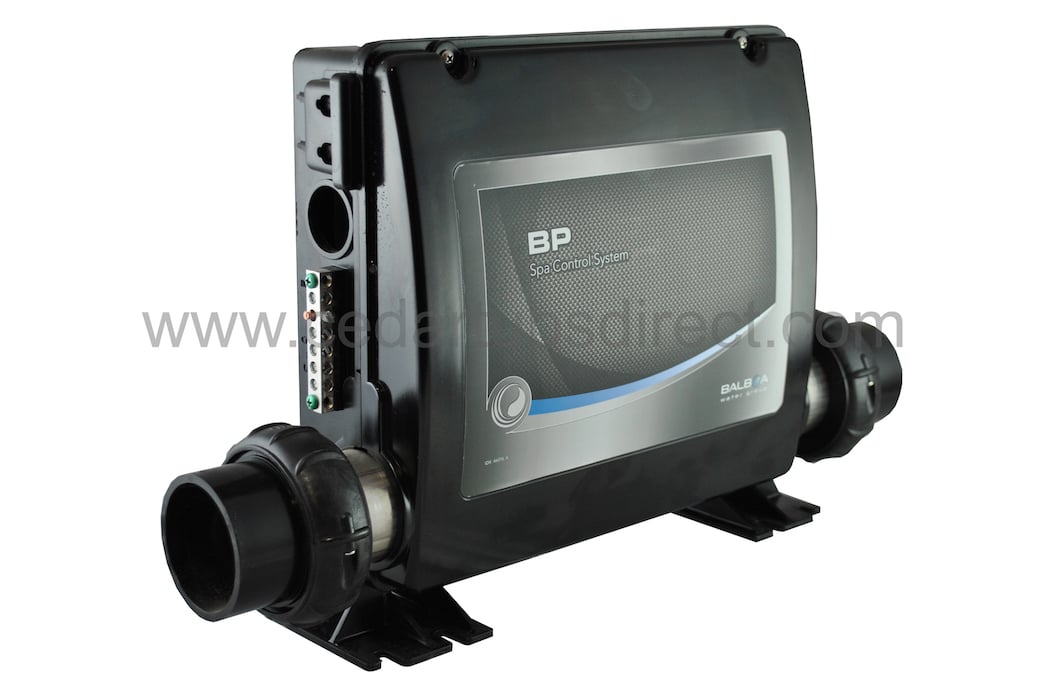

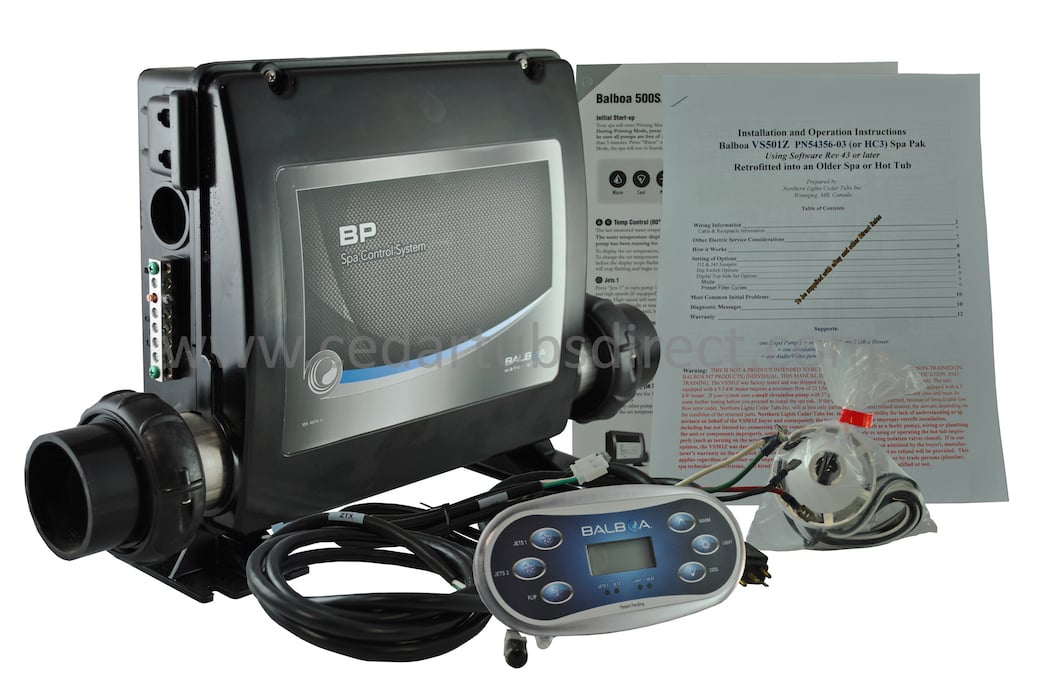

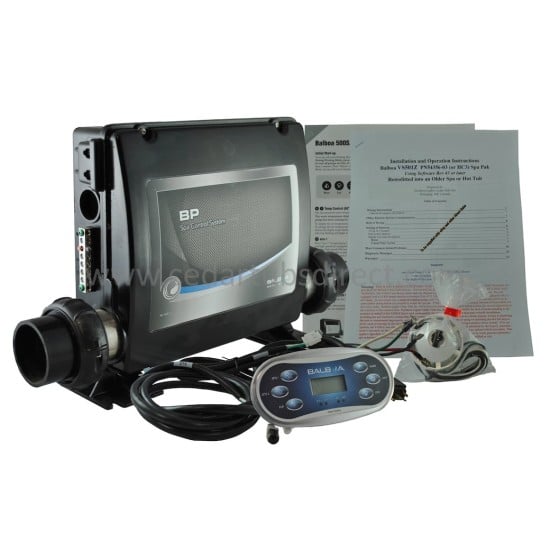

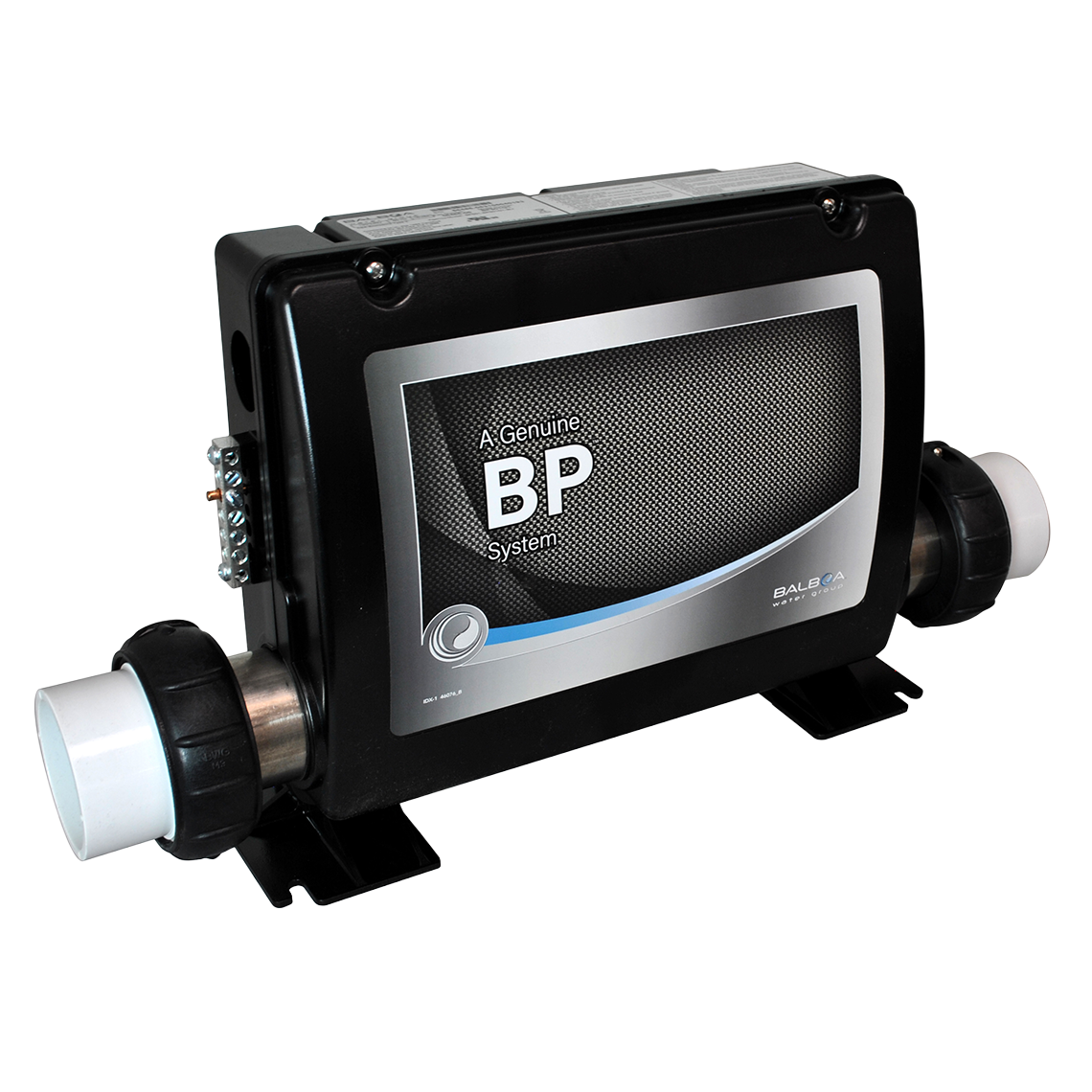

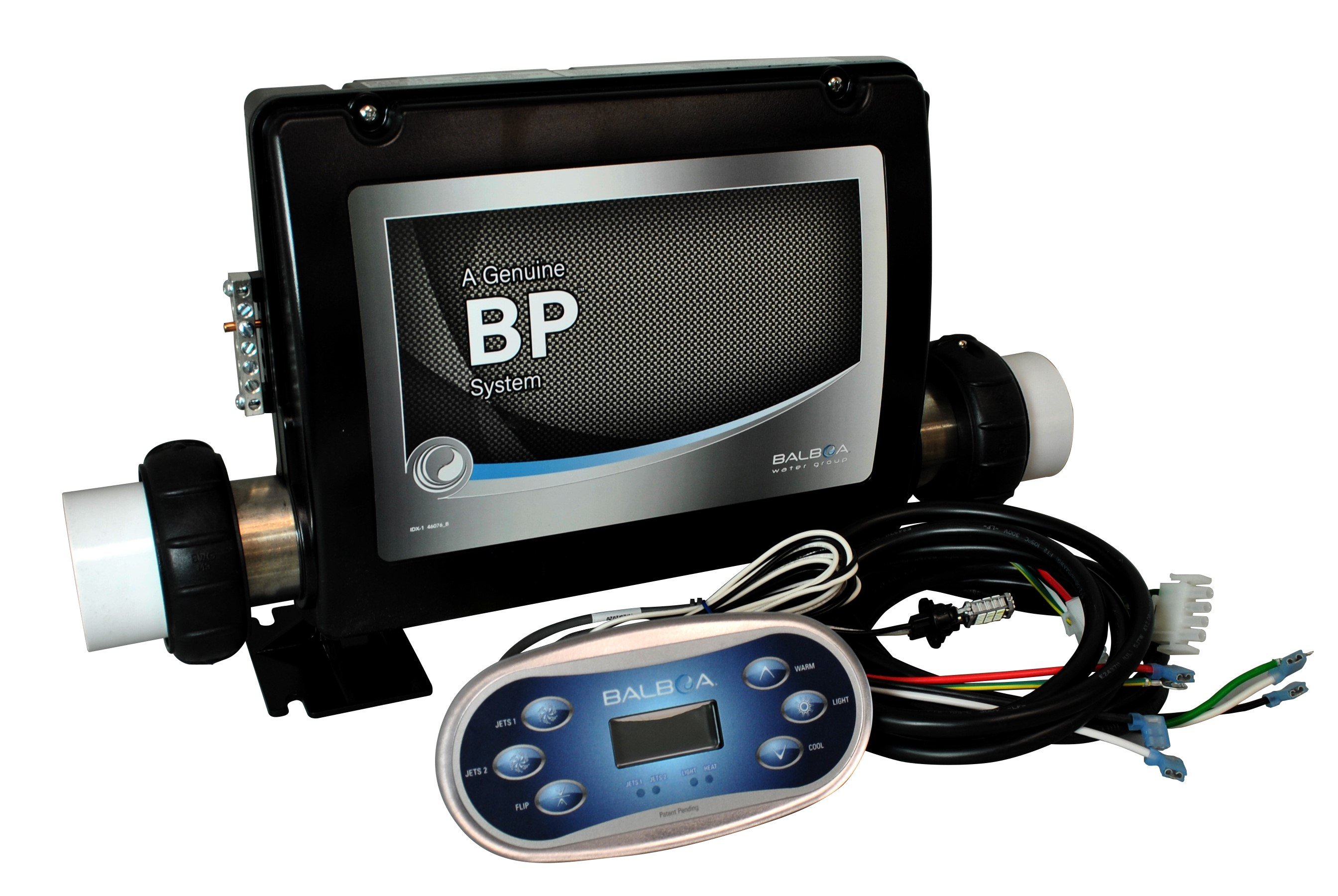

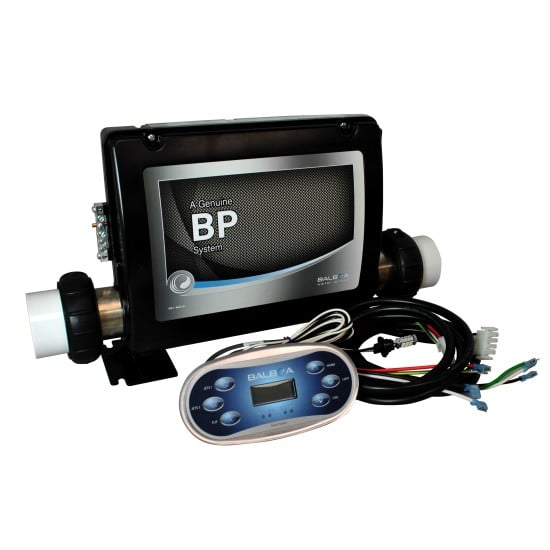

Balboa BP2000 Retro Fit Kit - Spa Pack with TP600 Controller cables

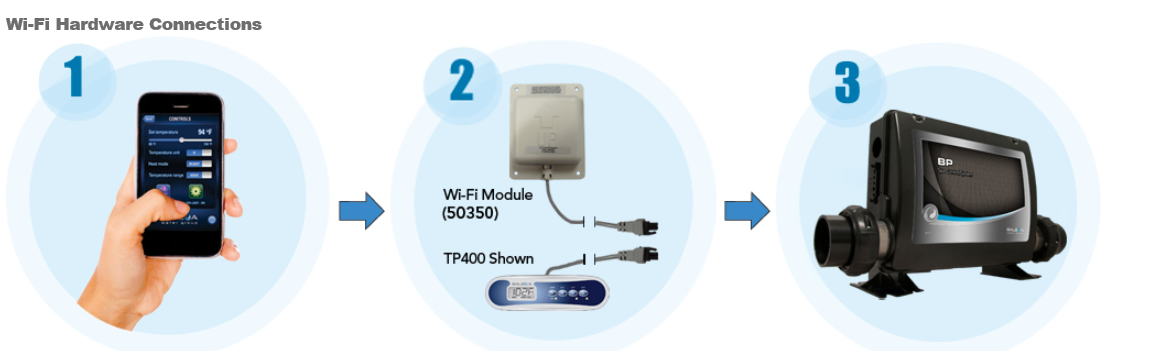

5.5Kw Digital Spa Controller - Wireless Smart Phone Integration
- Made in America -
Includes TP600 Top Side Controller

Although this spa pack can work at 120 VAC in which case it will produce 1.5 Kw of heat, it is primarily expected that it will be used at 230 VAC (requiring 40-60AMP service) and will produce 5.5 kW of heat. One or more auxiliary heater, each producing 4.0 kW or 5.5kW can be slaved to the unit if more power is required. Its union tail pieces (included) fit standard 2" piping or with reducers can be easily adapted to 1.5".

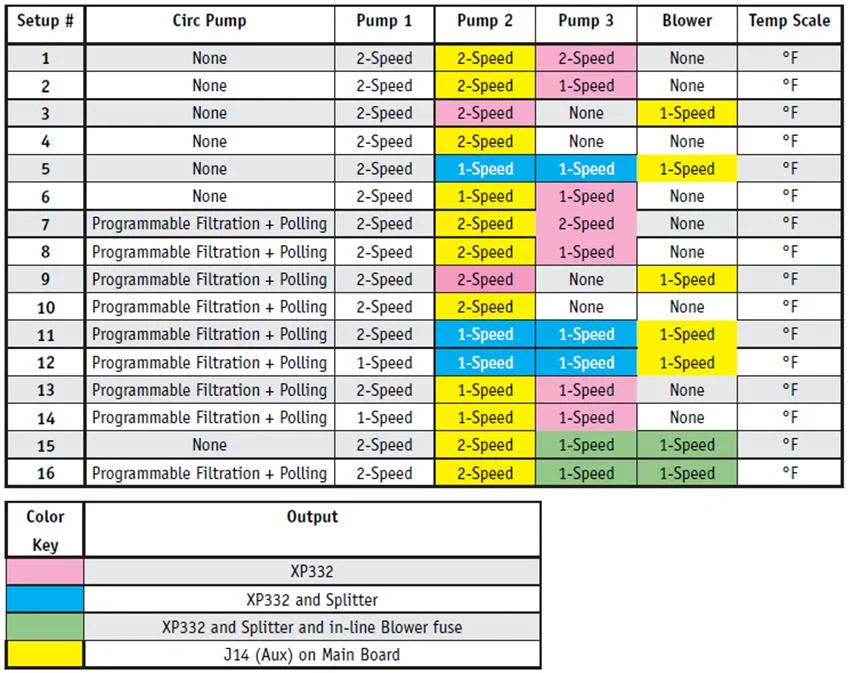

Built in programmable features such a 1 or 2 filter cycle programming per day by duration or time of day, various power saving modes including œReady, œRest and œReady in Rest, High (80-104°F) and Low (50-99°F) temperature setting, ozone suppression, clean up cycle, freeze protection, panel lock, temperature lock, standby mode for filter changes and sophisticated diagnosis and reminder measures are just some of the features. It also has the ability to select how much current will be drawn allowing a breaker as low as 30 Amp, yet still deliver the full 5.5 kW of electric heat. It has receptacles for supporting a wide range of configurations (setups) as illustrated in the table below:

Specifications:

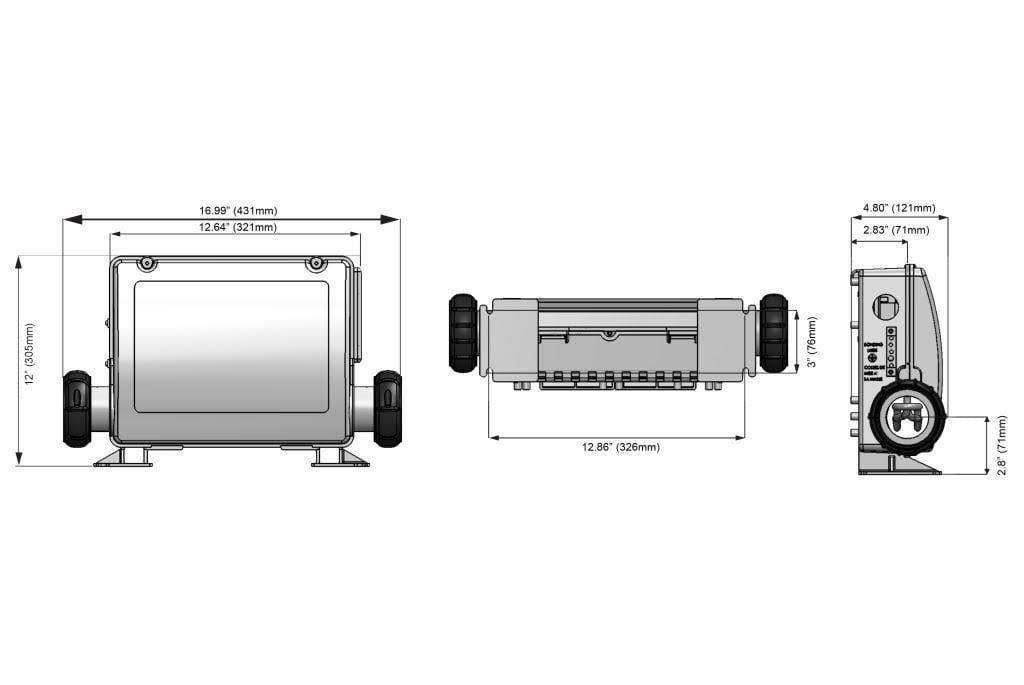

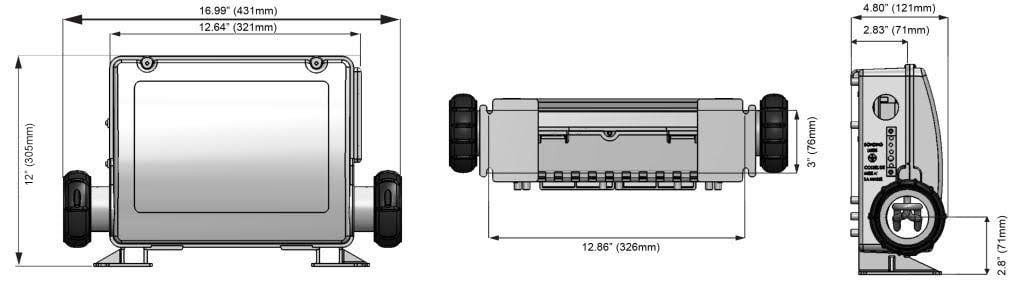

• 11.50 High x 17 Long x 4.8 Deep
• UL Recognized

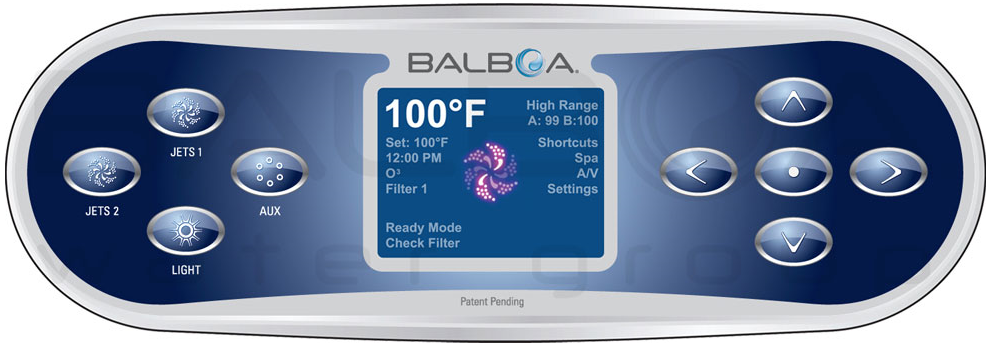

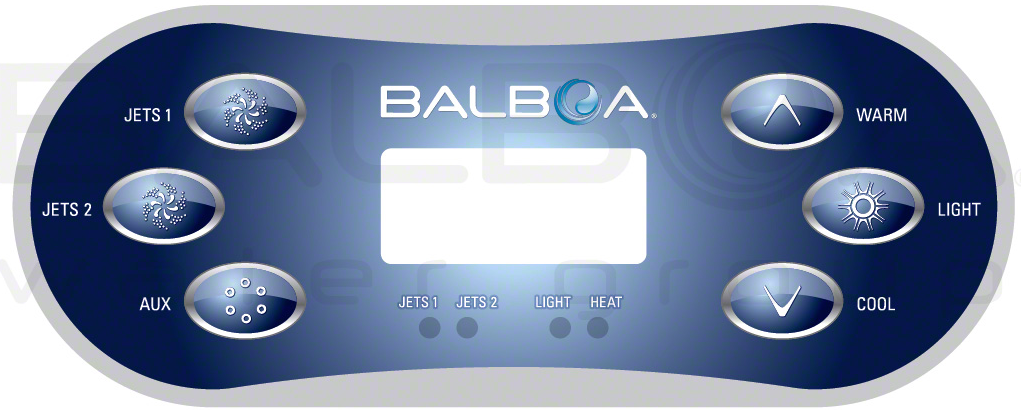

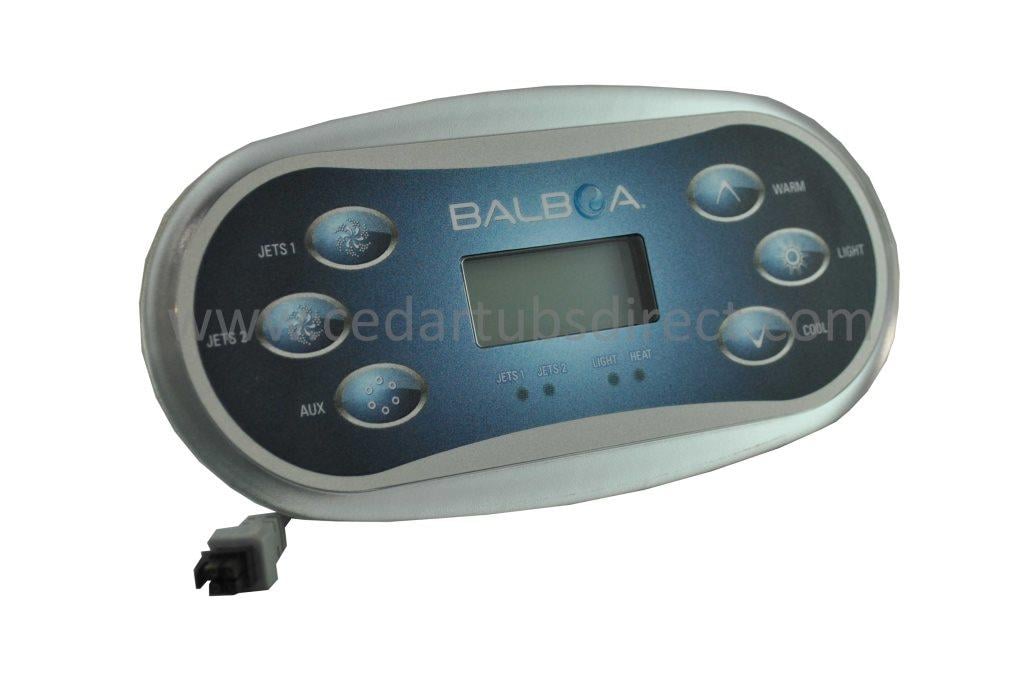

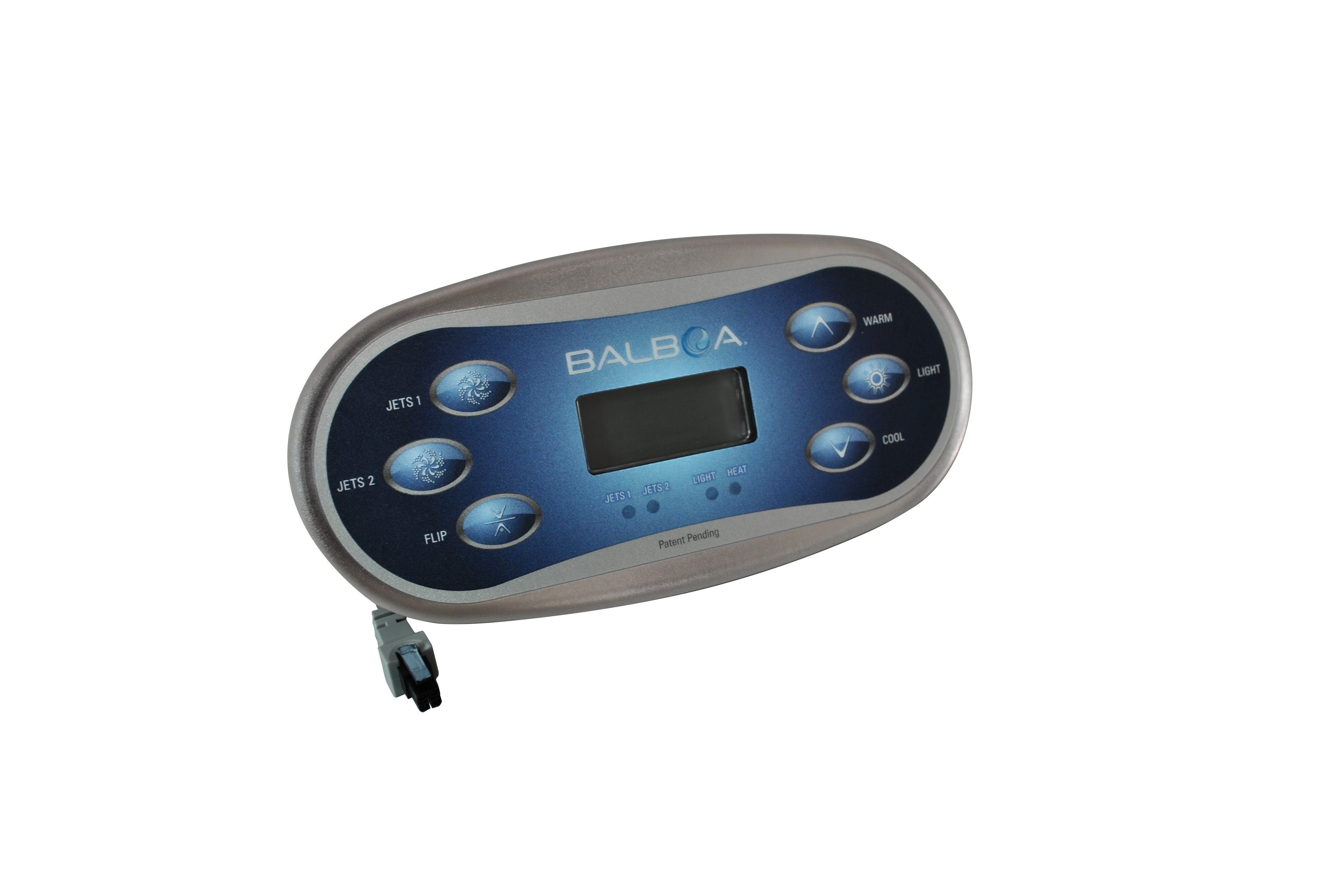

• Includes PN# 50335 TP600 Topside Controller withJets1, Jets2, Aux, Warm, Light, Cool control buttons (TP800 optional).

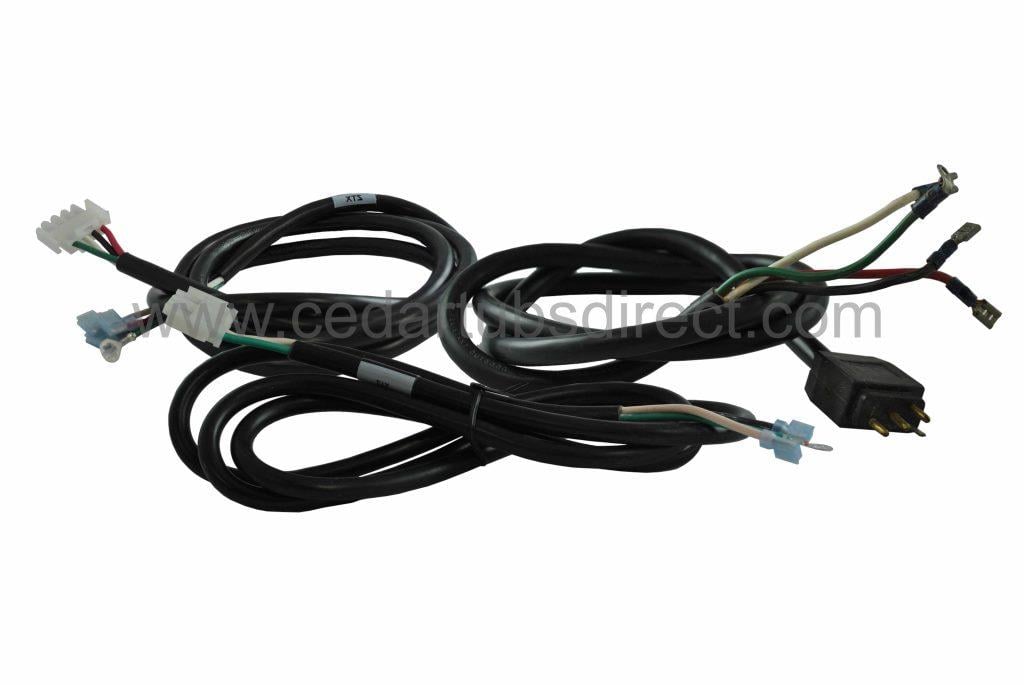

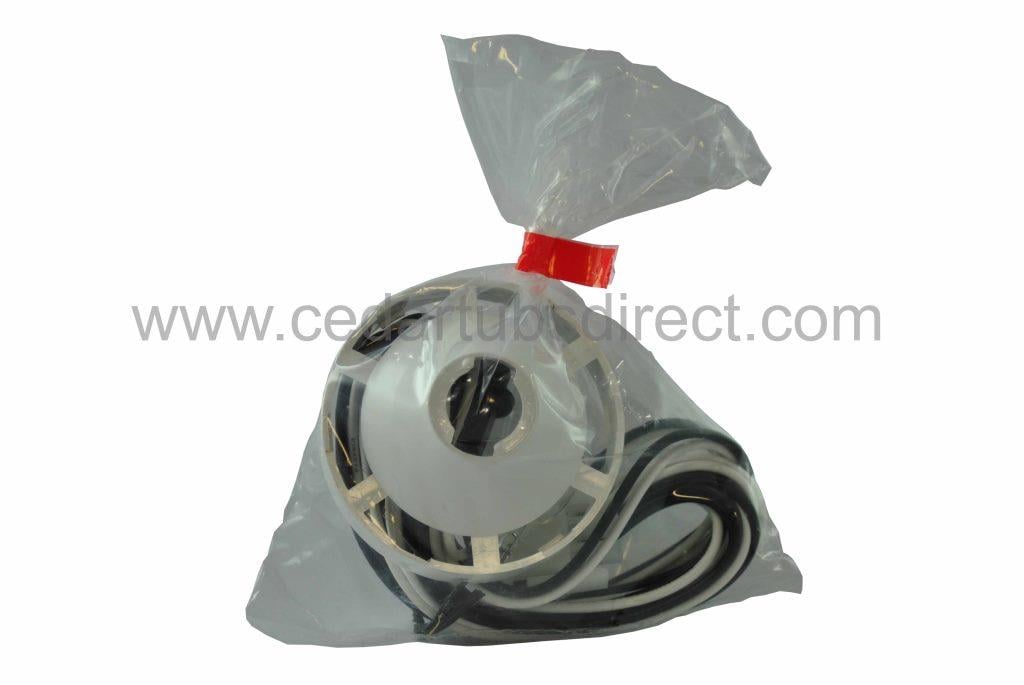

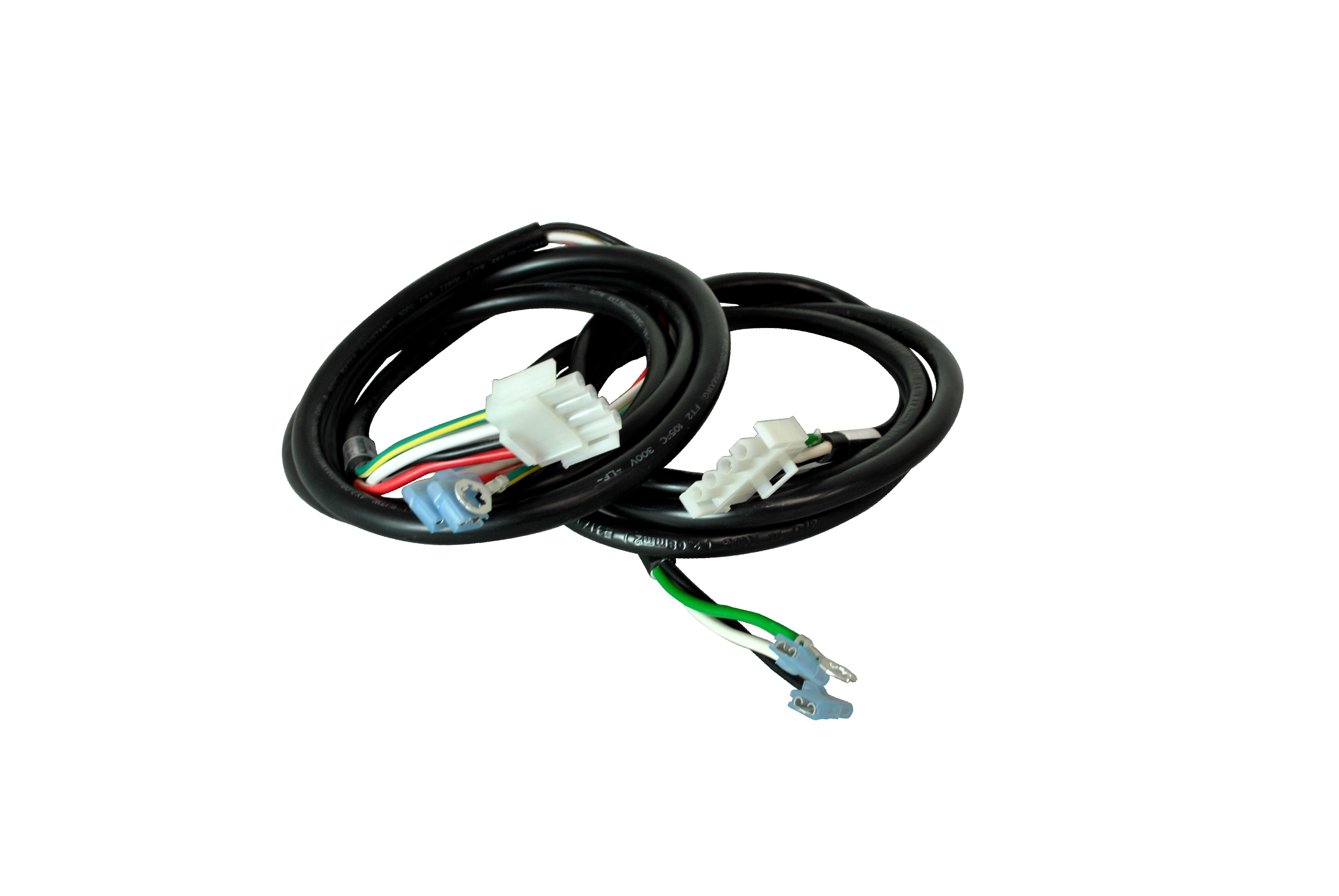

• Includes: 3x4-wire 2-spd pump cables, 3 x 3-wire cables, 1x 12v light wire kit, 1 x BPX2 cable adapter kit, 1 x spare male AMP plug with pins.

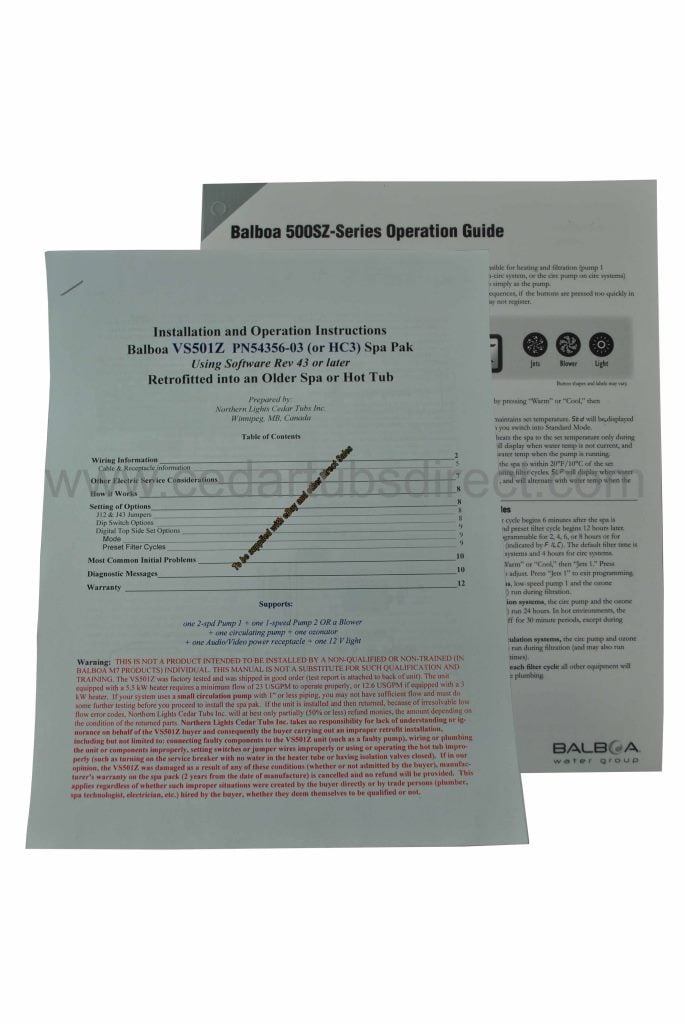

• Includes: Detailed instruction manual for installation to replace another brand of Spa Heater.
• Ozone support (ozonator voltage will be same as voltage of heater pump)
• 240VAC @ 60 Hz or 50 Hz, 40-60 Amp 3 wire (needs neutral wire)
• High or Low current mode
• Max Load ratings: Jet pumps to 16 Amps, Blower = 12 amp; Ozonator = 1 amp; A/V = 5 amp; Light = 12 v @ 1 amp
• The flow through heater tube must be a minimum of 20 USGPM if the heater is 5.5 kW. This flow rate should be checked if your spa uses a small circulation pump such a Laing E14 or others made by Grundfos or Waterway Mighty-Might. These small pumps when used with 1 piping typically cannot produce this flow. A 3kW heater element is available which reduces flow requirement to 13 USGPM, call us!
• Can only handle maximum of 4 pumps or 3 pumps plus blower excluding the circulation pump if used.
• Warranty 2 years for system including Heater and 1year for top-side Panel
• MADE IN AMERICA not China!
