1 HP Spa Pump -Vico Ulitma by UltraJet / Balboa Victoria Hot tub Pump -120 VAC

Balboa's Victoria pumps provide long life, excellent performance, value pricing and configuration flexibility all in a cost-effective package.

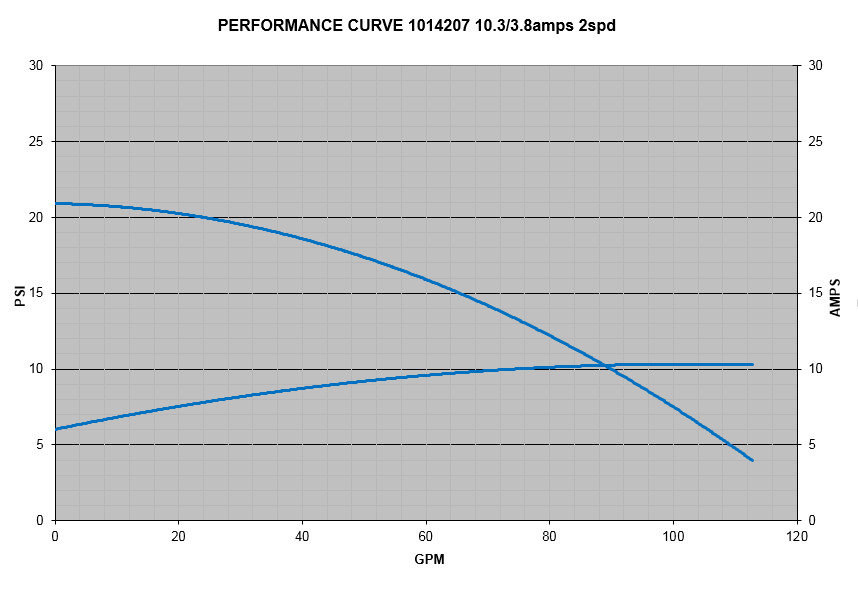

Flow rates for this pump can be up 100 gallons per minute (see below 1HP pump curves).

Features

• All seals are carbon ceramic with Viton® elastomers for long-lasting performance, easily enduring prolonged heat and chemical exposure
• Multi-direction volute mounting and options deliver the greatest range of plumbing configurations
• Frame 48 motor design
• two-speed motor
• 115 volt
• UL and CSA certified

This pump is intended as a replacement for common 1 HP 120 volt side discharge pumps that use 1-1/2" unions. The motor is a two speed pump but can also replace any single 1 speed 1HP pump (120 VAC). The pump is typically wired directly to the pump receptacles of a spa pack. Safety features include auto overheat shut off protection.

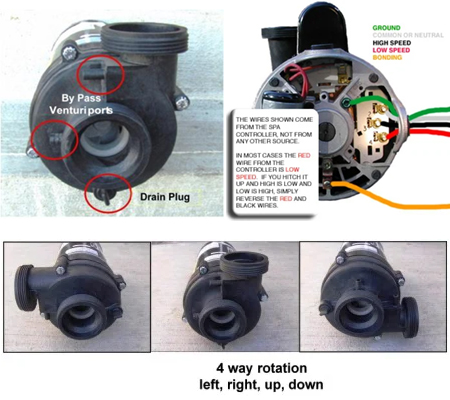

Comes complete with two x 1 1/2" replacement unions. Drain plug ensures no water is left in the pump body during storage, which is useful for hygienic reasons and also prevents freeze damage where applicable. All Victoria (formerly Ultima) pumps have discharge and suction nipples that allow for a side stream flow, for such purposes as an ozonator venturi. If your hot tub uses these nipples, they must first be drilled out on the new replacement pump before they become active.

Specifications:

• amps = 10.3/3.8 amps
• rpm = 3450/1725 rpm
• 110, 115, 120 VAC 60 Hz, 2 speed (optional 1 speed if you connect only to the high speed terminal)
• frame = 48 (5.85" wide motor)
• length = 15.32"
• height = 7.58"
• Connection side = 1 1/2"
• warranty = 2 years
