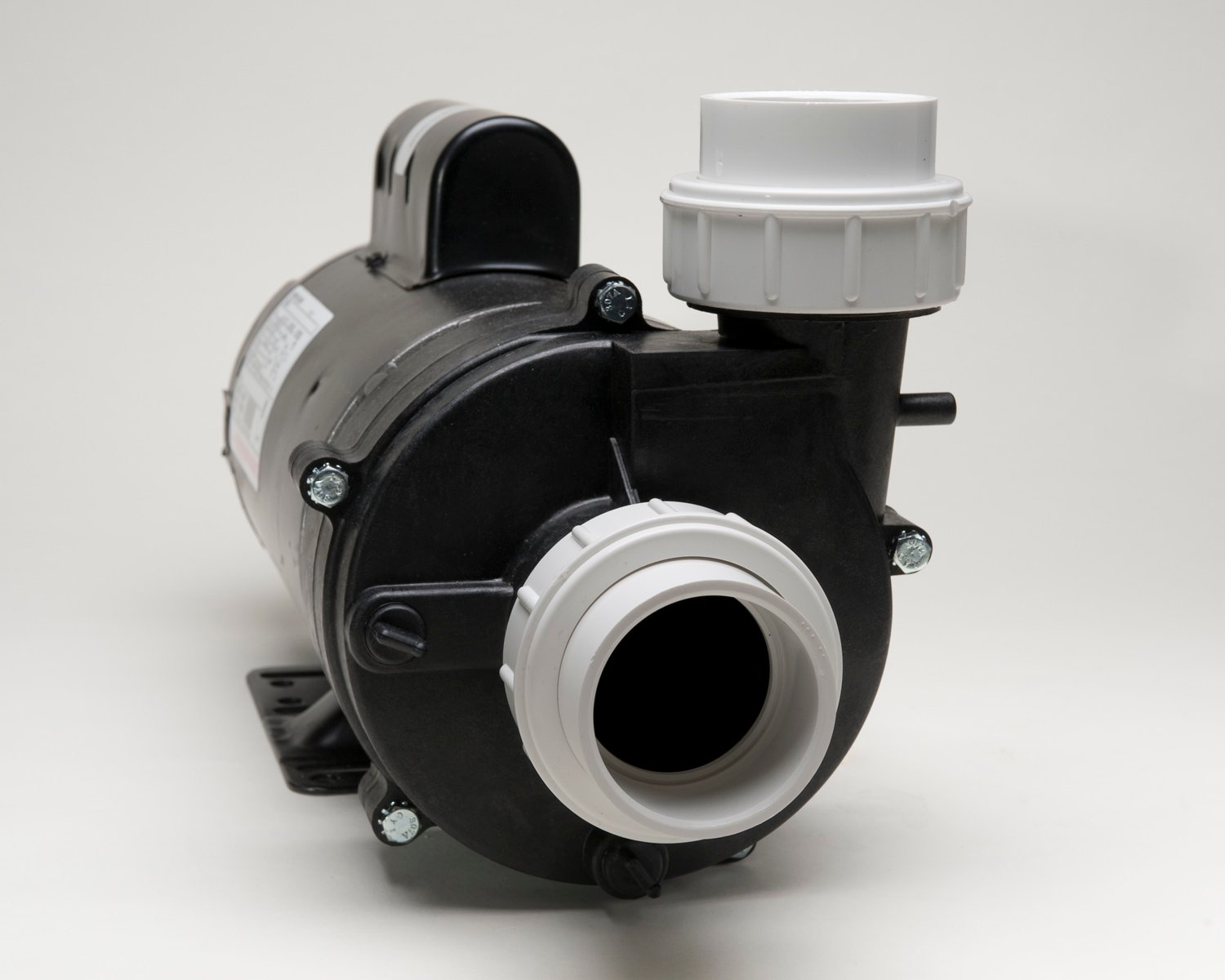

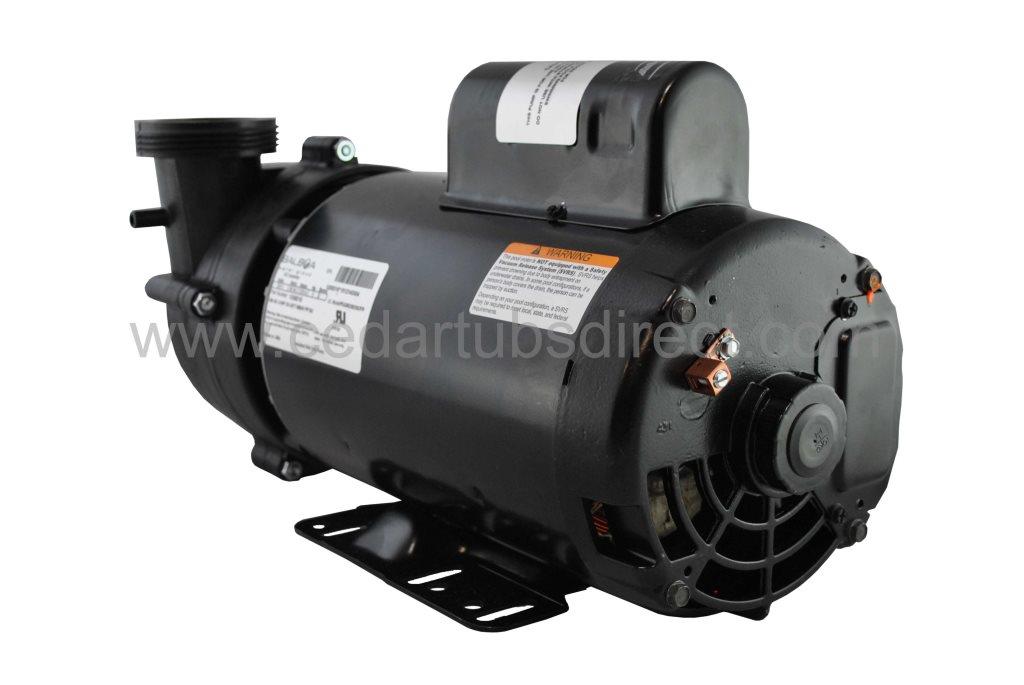

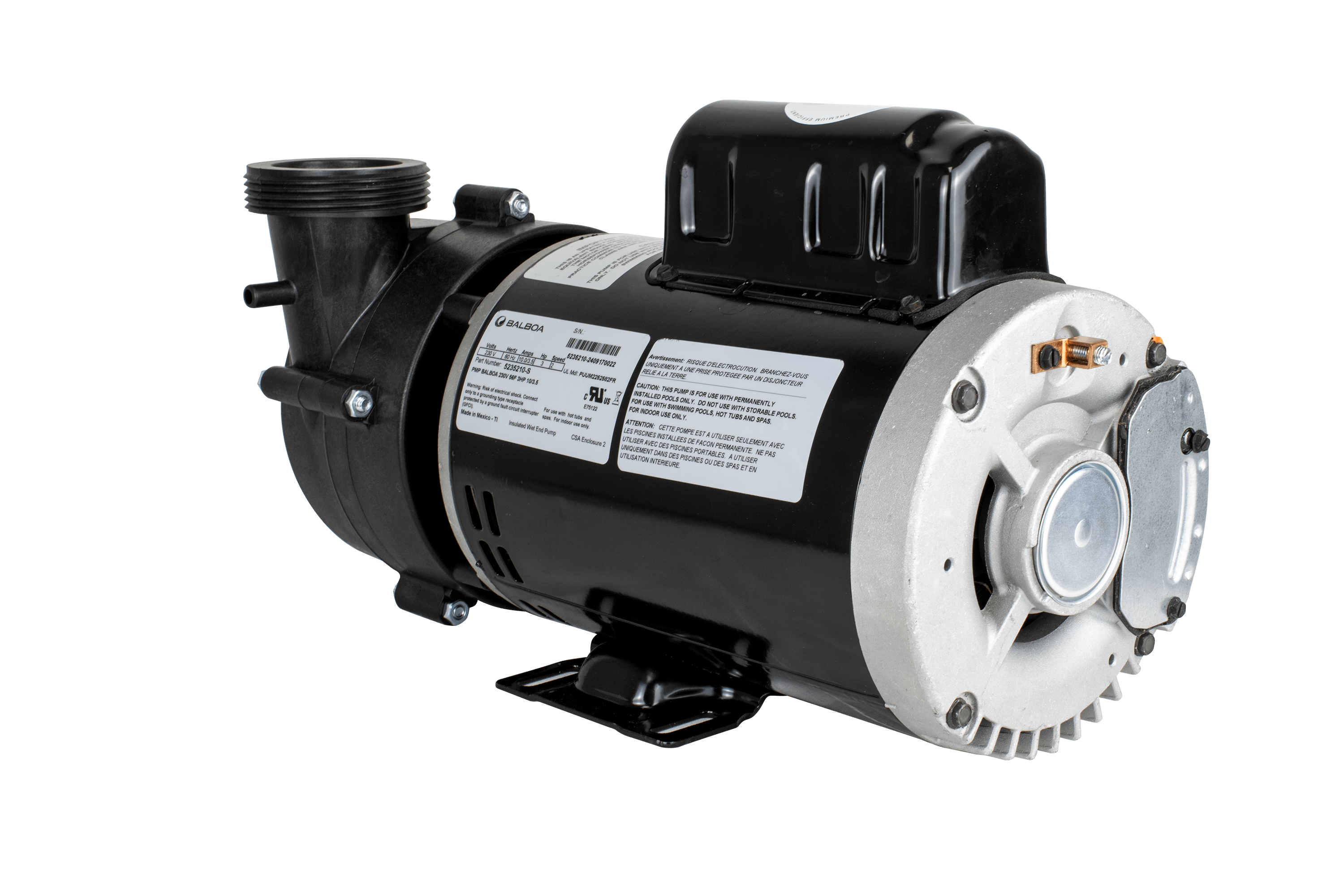

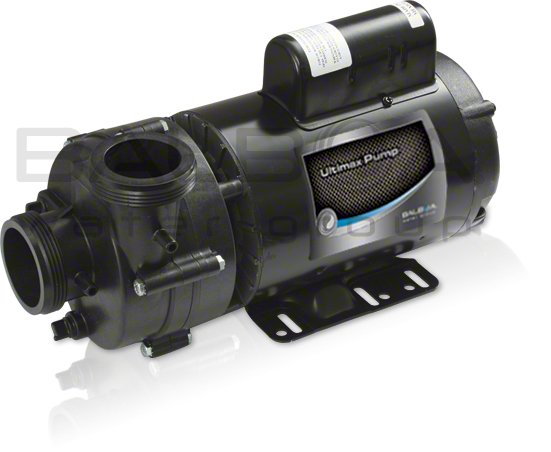

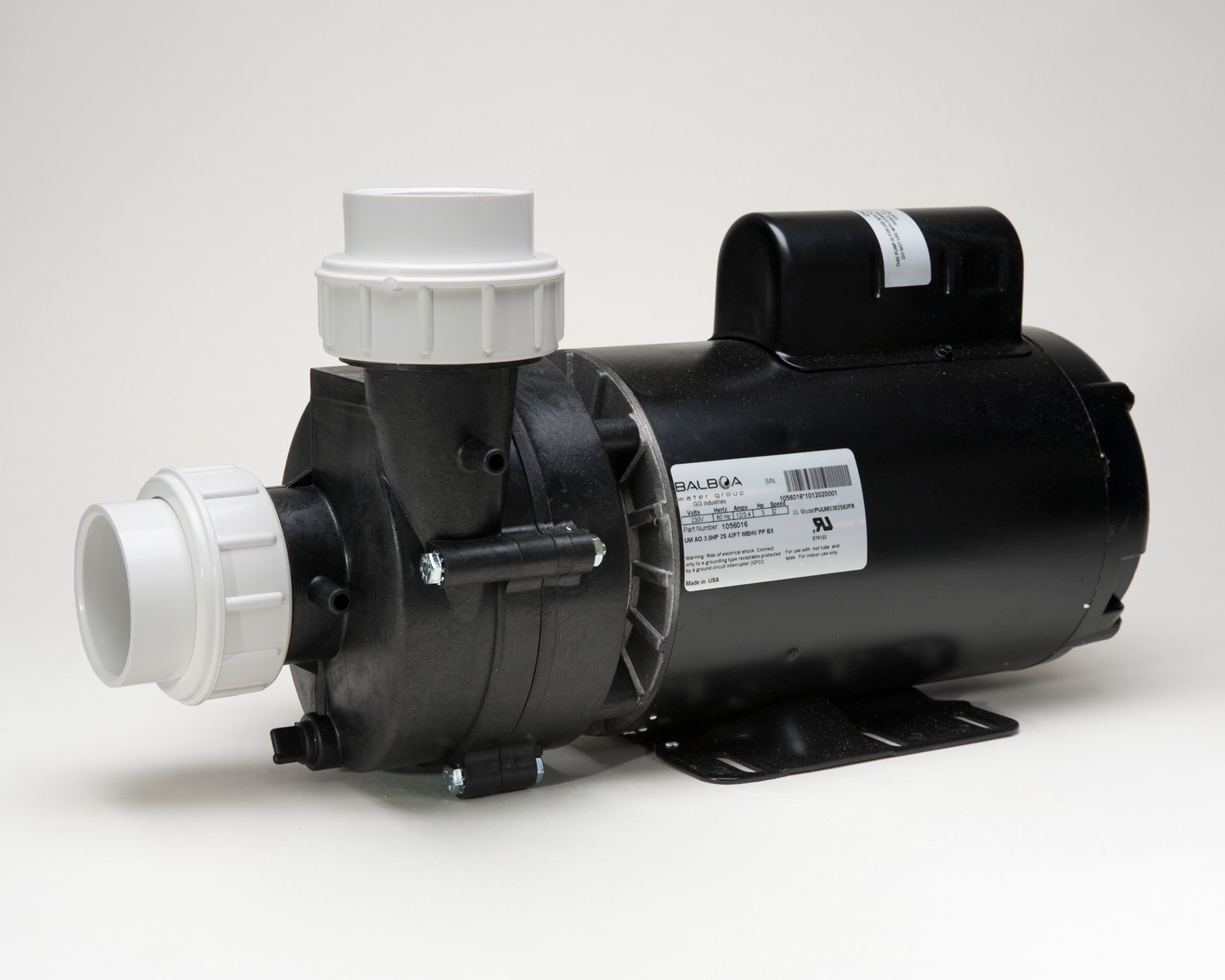

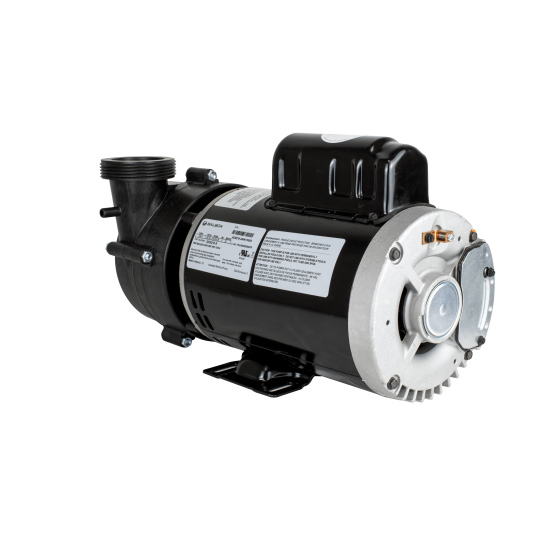

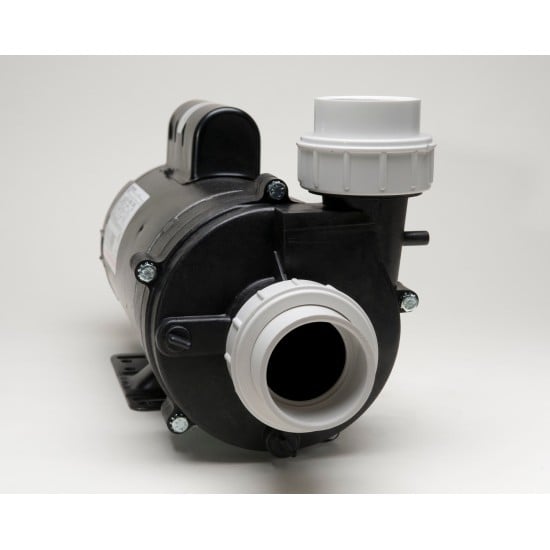

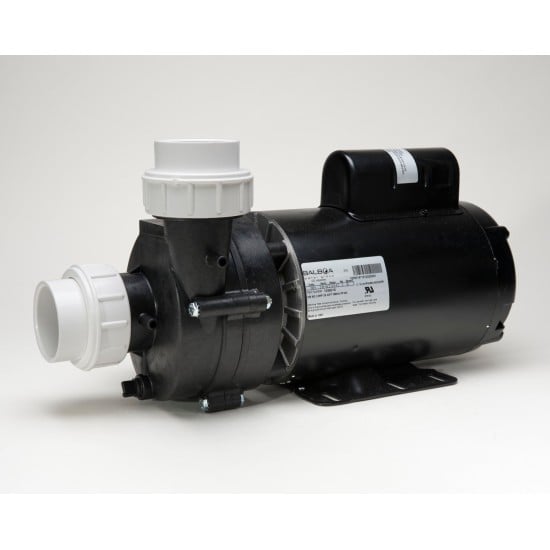

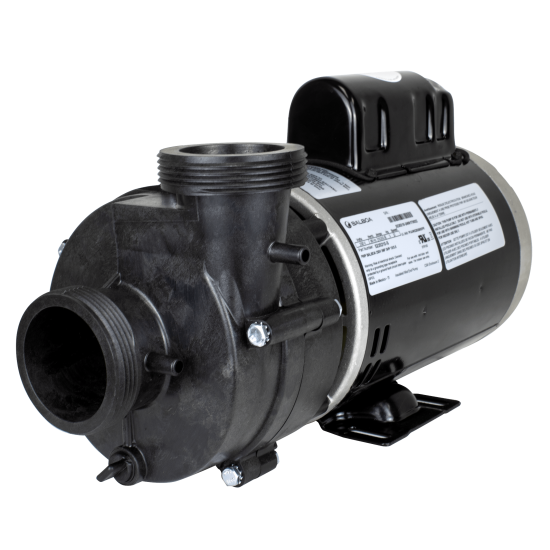

3 HP 2-SPEED SPA PUMP 240 VOLTS – BALBOA ULTIMAX NIAGARA
PN: 5235210-S

3450/1725 RPM, Frame 56, 10.0/3.5 Amp motor, 2” side discharge wet end

Formerly marked as Ultima model by UltraJet, Vicco, Pentair and Balboa

Can also be used as a 1-speed 3 HP pump

Premier Niagara pumps are the ultimate benchmark in design flexibility and performance. From small applications for zone seating and focused therapy up to multi pump configurations to run 100+ jetted systems, Niagara pumps supply the specific performance features you require and the long service life and powerful performance spa owners demand.

Niagara pumps offer the options you need, an energy-efficient package, unsurpassed design flexibility, ease of installation, high flow rate and dependable operation.

Features

High flow rates exceeding 325 gallons per minute for maximum performance in your luxury applications
All seals are carbon ceramic with Viton® elastomers for long-lasting performance, easily enduring prolonged heat and chemical exposure
Multi-directional volute mountings provide the flexibility to accommodate any configuration; 2” suction
Cool running 56 frame motor
Two-speed motor from 1.5 to 4 HP; with two-speed models, sanitization and heating can occur while maintaining lower running costs
Specify an ultra efficient motor and our highest efficiency hydraulics versions help meet appliance efficiency regulations
Reliable performance and long service life for more enjoyable ownership
UL, TUV, CSA, and CE/VDE/GS certified

This energy efficient pump, Balboa's Niagara ( formerly Ultra Jet Ultimax), meets and exceed the most strict level of municipal noise requirements. This pumps is intended as a replacement for common true 3.0 HP 230 volt side discharge pumps that use 2” unions at both the suction and discharge connections. The pump is normally directly wired to receptacle of spa pack. Save your old pump’s cord so you have the correct connector. Safety features include auto motor overheat shut off protection. This pump is designed as a 2 speed pump but can also replace any single 1-speed 3 HP pump.

Comes complete with two 2" replacement unions. Drain plug ensures no water is left in the pump body during storage, which is useful for hygienic reasons and also prevents freeze damage where applicable. All Niagara (formerly Ultimax) pumps have discharge and suction nipples that allow for a side stream flow, for such purposes as an ozonator venturi. If your hot tub uses these nipples, they must first be drilled out on the new replacement pump before they become active.

The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor. If the pump fails during this period we will ship a replacement and you may be required to return the defective pump. Warranty does not cover frost damage, damage as a result of running the unit dry or damage caused by incorrect wiring or applying incorrect voltage.

Balboa is the largest spa parts manufacture in the world. These pumps are NOT CHINESE and are proudly manufactured in the USA (Tustin, California).

Specifications:

amps (min/max) = 10.0/3.5amps
rpm (min/max)= 1750/3400 rpm
240VAC 60 Hz, 2 speed
frame = 56 (6.69" wide motor)
length = 15.82"
height = 8.83"
Connection side = 2"
warranty = 2 years

Comes with 2" Pump Unions

Flow Curve & Dimensions
